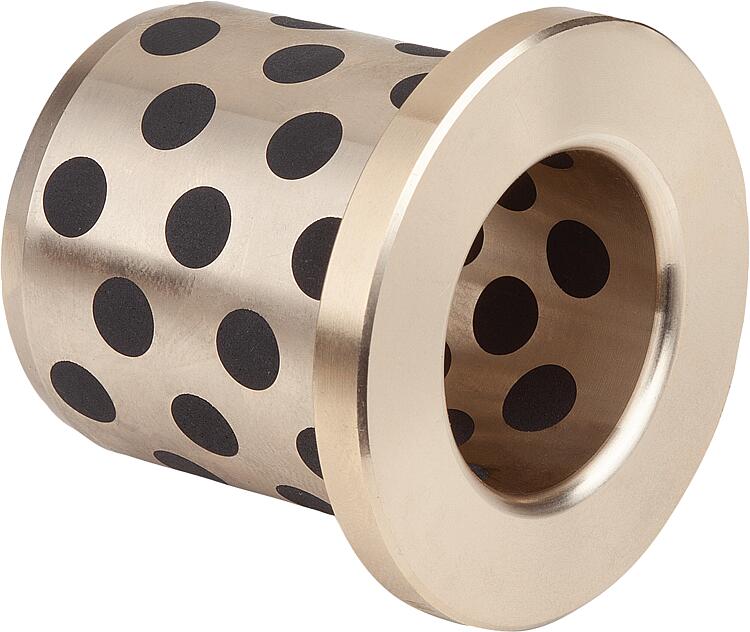

23681-05_BCasquillos guía con collar de bronce, sin mantenimiento, forma B |
Volver |
|
Descripción del artículo/Imágenes del producto |
|
|
DescripciónMaterial:Bronce con insertos de grafito.Versión:Autolubricante.
Dureza 190-220 HBW.Indicación:Los casquillos guía se pueden utilizar radial y axialmente.
Los elementos corredizos son libres de mantenimiento y resistentes al desgaste.
Gracias a los insertos de grafito, la lubricación es de por vida.Datos técnicos:Propiedades del material:
Aleación básica: CuZn25Al5Mn4Fe3-C.
Densidad: 8,2 kg/dm³.
Resistencia alterna de flexión: +/- 150 MPa.
Módulo elasticidad: 120.000 N/mm².
Coeficiente de fricción: 0,05 - 0,12.
Velocidad máxima: 0,5 m/s.
Conductividad térmica: 50 W/(mK).
Coeficiente de dilatación: 18x10-6 K-1.
Conductividad eléctrica: 7-8 m/(Ω·m-1).
Proporción de lubricante sólido: 20-25%.
Compresión superficial estática: 50 N/mm².
Compresión superficial dinámica: 35 N/mm².Rango de temperatura:Hasta 230 °C.Tolerancias:La perforación de alojamiento para el cojinete de deslizamiento debe cumplir las tolerancias ISO H7.
En el caso del árbol, se recomiendan las tolerancias H6 a H7. DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
Selección/filtro de artículos |
|
| Referencia | Forma | D
| D1 | D2 | L | L1 | L2 | R | CAD | Acc. | Precio | Pedir |
|---|
| 23681-05-010014015 | B | 10 | 14 | 22 | 15 | 2 | 2 | 1 |  | | 400.12 MXN | | | 23681-05-010014020 | B | 10 | 14 | 22 | 20 | 2 | 2 | 1 | | | 544.32 MXN | | | 23681-05-012018015 | B | 12 | 18 | 25 | 15 | 3 | 3 | 1 | | | 568.40 MXN | | | 23681-05-012018020 | B | 12 | 18 | 25 | 20 | 3 | 3 | 1 | | | 587.72 MXN | | | 23681-05-013019015 | B | 13 | 19 | 26 | 15 | 3 | 3 | 1,5 | | | 572.60 MXN | | | 23681-05-013019020 | B | 13 | 19 | 26 | 20 | 3 | 3 | 1,5 | | | 594.72 MXN | | | 23681-05-014020015 | B | 14 | 20 | 27 | 15 | 3 | 3 | 1,5 | | | 578.48 MXN | | | 23681-05-014020020 | B | 14 | 20 | 27 | 20 | 3 | 3 | 1,5 | | | 601.44 MXN | | | 23681-05-015021015 | B | 15 | 21 | 28 | 15 | 3 | 3 | 1,5 | | | 581.84 MXN | | | 23681-05-015021020 | B | 15 | 21 | 28 | 20 | 3 | 3 | 1,5 | | | 605.92 MXN | | | 23681-05-015021025 | B | 15 | 21 | 28 | 25 | 3 | 3 | 1,5 | | | 630.28 MXN | | | 23681-05-016022015 | B | 16 | 22 | 29 | 15 | 3 | 3 | 1,5 | | | 587.72 MXN | | | 23681-05-016022020 | B | 16 | 22 | 29 | 20 | 3 | 3 | 1,5 | | | 613.20 MXN | | | 23681-05-016022025 | B | 16 | 22 | 29 | 25 | 3 | 3 | 1,5 | | | 637.84 MXN | | | 23681-05-016022030 | B | 16 | 22 | 29 | 30 | 3 | 3 | 1,5 | | | 662.76 MXN | | | 23681-05-020030015 | B | 20 | 30 | 40 | 15 | 5 | 3 | 1,5 | | | 389.48 MXN | | | 23681-05-020030020 | B | 20 | 30 | 40 | 20 | 5 | 3 | 1,5 | | | 477.96 MXN | | | 23681-05-020030030 | B | 20 | 30 | 40 | 30 | 5 | 3 | 1,5 | | | 655.20 MXN | | | 23681-05-020030040 | B | 20 | 30 | 40 | 40 | 5 | 3 | 1,5 | | | 833.00 MXN | | | 23681-05-025035020 | B | 25 | 35 | 45 | 20 | 5 | 3 | 2 | | | 567.56 MXN | | | 23681-05-025035025 | B | 25 | 35 | 45 | 25 | 5 | 3 | 2 | | | 674.24 MXN | | | 23681-05-025035030 | B | 25 | 35 | 45 | 30 | 5 | 3 | 2 | | | 778.12 MXN | | | 23681-05-025035035 | B | 25 | 35 | 45 | 35 | 5 | 3 | 2 | | | 903.56 MXN | | | 23681-05-025035040 | B | 25 | 35 | 45 | 40 | 5 | 3 | 2 | | | 991.48 MXN | | | 23681-05-030040020 | B | 30 | 40 | 50 | 20 | 5 | 3 | 2 | | | 655.20 MXN | | | 23681-05-030040025 | B | 30 | 40 | 50 | 25 | 5 | 3 | 2 | | | 778.12 MXN | | | 23681-05-030040030 | B | 30 | 40 | 50 | 30 | 5 | 3 | 2 | | | 903.56 MXN | | | 23681-05-030040035 | B | 30 | 40 | 50 | 35 | 5 | 3 | 2 | | | 1,027.32 MXN | | | 23681-05-030040040 | B | 30 | 40 | 50 | 40 | 5 | 3 | 2 | | | 677.32 MXN | | | 23681-05-030040050 | B | 30 | 40 | 50 | 50 | 5 | 3 | 2 | | | 847.00 MXN | | | 23681-05-031040035 | B | 31,5 | 40 | 50 | 35 | 5 | 3 | 2 | | | 913.64 MXN | | | 23681-05-035045025 | B | 35 | 45 | 60 | 25 | 5 | 4 | 2 | | | 991.48 MXN | | | 23681-05-035045030 | B | 35 | 45 | 60 | 30 | 5 | 4 | 2 | | | 677.32 MXN | | | 23681-05-035045040 | B | 35 | 45 | 60 | 40 | 5 | 4 | 2 | | | 847.00 MXN | | | 23681-05-035045050 | B | 35 | 45 | 60 | 50 | 5 | 4 | 2 | | | 1,017.80 MXN | | | 23681-05-040050030 | B | 40 | 50 | 65 | 30 | 5 | 4 | 2 | | | 757.96 MXN | | | 23681-05-040050040 | B | 40 | 50 | 65 | 40 | 5 | 4 | 2 | | | 948.36 MXN | | | 23681-05-040050050 | B | 40 | 50 | 65 | 50 | 5 | 4 | 2 | | | 1,138.76 MXN | | | 23681-05-045055030 | B | 45 | 55 | 70 | 30 | 5 | 4 | 2 | | | 835.80 MXN | | | 23681-05-045055040 | B | 45 | 55 | 70 | 40 | 5 | 4 | 2 | | | 1,049.44 MXN | | | 23681-05-045055050 | B | 45 | 55 | 70 | 50 | 5 | 4 | 2 | | | 1,261.40 MXN | | | 23681-05-045055060 | B | 45 | 55 | 70 | 60 | 5 | 4 | 2 | | | 1,294.44 MXN | | | 23681-05-050060030 | B | 50 | 60 | 75 | 30 | 5 | 4 | 2 | | | 916.72 MXN | | | 23681-05-050060040 | B | 50 | 60 | 75 | 40 | 5 | 4 | 2 | | | 1,150.52 MXN | | | 23681-05-050060060 | B | 50 | 60 | 75 | 60 | 5 | 4 | 2 | | | 1,421.28 MXN | | | 23681-05-055065040 | B | 55 | 65 | 80 | 40 | 5 | 4 | 2 | | | 1,374.52 MXN | | | 23681-05-055065060 | B | 55 | 65 | 80 | 60 | 5 | 4 | 2 | | | 1,563.52 MXN | | | 23681-05-060075040 | B | 60 | 75 | 90 | 40 | 7,5 | 4 | 3 | | | 1,638.28 MXN | | | 23681-05-060075050 | B | 60 | 75 | 90 | 50 | 7,5 | 4 | 3 | | | 1,638.28 MXN | | | 23681-05-060075080 | B | 60 | 75 | 90 | 80 | 7,5 | 4 | 3 | | | 2,110.08 MXN | | | 23681-05-063075067 | B | 63 | 75 | 85 | 67,5 | 7,5 | 4 | 3 | | | 1,928.08 MXN | | | 23681-05-070085050 | B | 70 | 85 | 105 | 50 | 7,5 | 4 | 3 | | | 1,953.56 MXN | | | 23681-05-070085080 | B | 70 | 85 | 105 | 80 | 7,5 | 4 | 3 | | | 2,895.48 MXN | | | 23681-05-075090060 | B | 75 | 90 | 110 | 60 | 7,5 | 4 | 3 | | | 2,110.08 MXN | | | 23681-05-080100060 | B | 80 | 100 | 120 | 60 | 10 | 5 | 3 | | | 2,917.04 MXN | | | 23681-05-080100080 | B | 80 | 100 | 120 | 80 | 10 | 5 | 3 | | | 3,361.96 MXN | | | 23681-05-080100100 | B | 80 | 100 | 120 | 100 | 10 | 5 | 3 | | | 4,089.68 MXN | | | 23681-05-090110060 | B | 90 | 110 | 130 | 60 | 10 | 5 | 3 | | | 2,917.04 MXN | | | 23681-05-090110080 | B | 90 | 110 | 130 | 80 | 10 | 5 | 3 | | | 3,726.24 MXN | | | 23681-05-100120080 | B | 100 | 120 | 150 | 80 | 10 | 5 | 3 | | | 4,383.96 MXN | | | 23681-05-100120100 | B | 100 | 120 | 150 | 100 | 10 | 5 | 3 | | | 5,275.48 MXN | | | 23681-05-120140080 | B | 120 | 140 | 170 | 80 | 10 | 5 | 3 | | | 5,152.84 MXN | | | 23681-05-120140100 | B | 120 | 140 | 170 | 100 | 10 | 5 | 3 | | | 6,206.76 MXN | |
