12000Cilindros neumáticos cilindros normalizados DIN ISO 15552 |
Volver |
|
Descripción del artículo/Imágenes del producto |
|
|

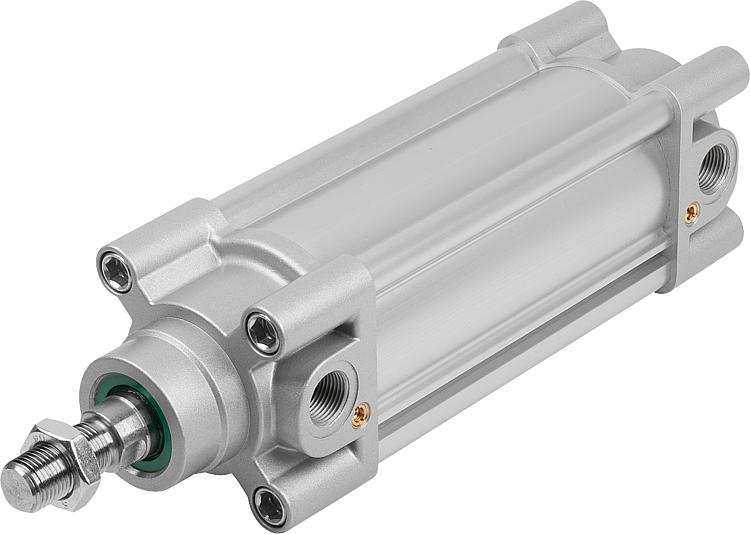

DescripciónMaterial:Tubo cilíndrico: aluminio. Tapa de extremo: fundición de aluminio a presión. Vástago de pistón: acero templado y revenido 1.0503. Junta de pistón y de vástago de pistón PU.Versión:Tubo cilíndrico anodizado. Tapa de extremo: lacada. Vástago de pistón: cromado duro.Indicación:Cilindro neumático de acción doble con diseño de construcción optimizado según DIN ISO 15552. Vástago de pistón con rosca exterior, detección de posición y amortiguación neumática ajustable.
Debido a su diseño resistente, estos cilindros se utilizan preferentemente para distintas aplicaciones.Datos técnicos:Funcionamiento: de acción doble. Medio de servicio: aire filtrado, secado, lubricado o no lubricado. Presión de servicio: 1 a 10 bar. Amortiguación: amortiguación neumática de doble cara, ajustable. Posición de montaje: opcional. Detección de posición: para interruptores de proximidad insertables por la parte superior en la ranura en T. Conexión neumática: DIN EN ISO 228/1.Rango de temperatura:De -20 °C a +80 °C.Características especiales: DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
Selección/filtro de artículos |
|

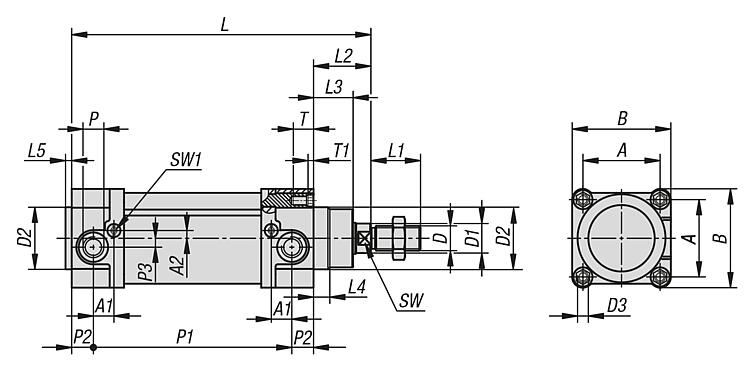

Referencia | Ø de cilindro | Carrera S | A | A1 | A2 | B | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | L5 | P | P1 | P2 | P3 | SW | SW1 | T | T1 | Fuerza de pistón con 6 bar (N) | Fuerza de recuperación con 6 bar (N) | CAD | Acc. | Precio | Pedir |
---|
12000-032025 | 32 | 25 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 145 | 22 | 26 | 18 | 8 | 4 | G1/8 | 94 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,535.96 MXN | | 12000-032050 | 32 | 50 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 170 | 22 | 26 | 18 | 8 | 4 | G1/8 | 119 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,567.04 MXN | | 12000-032080 | 32 | 80 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 200 | 22 | 26 | 18 | 8 | 4 | G1/8 | 149 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,879.80 MXN | | 12000-032100 | 32 | 100 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 220 | 22 | 26 | 18 | 8 | 4 | G1/8 | 169 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,630.60 MXN | | 12000-032125 | 32 | 125 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 245 | 22 | 26 | 18 | 8 | 4 | G1/8 | 194 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,661.68 MXN | | 12000-032160 | 32 | 160 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 280 | 22 | 26 | 18 | 8 | 4 | G1/8 | 229 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,705.92 MXN | | 12000-032200 | 32 | 200 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 320 | 22 | 26 | 18 | 8 | 4 | G1/8 | 269 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,755.76 MXN | | 12000-032250 | 32 | 250 | 32,5 | 11,5 | 3,5 | 47 | M10x1,25 | 12 | 30 | M6 | 370 | 22 | 26 | 18 | 8 | 4 | G1/8 | 319 | 12,5 | - | 10 | 2 | 16,5 | 5 | 458 | 394 | | | 2,817.08 MXN | | 12000-040025 | 40 | 25 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 160 | 24 | 30 | 22 | 12 | 4 | G1/4 | 102 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 2,862.44 MXN | | 12000-040050 | 40 | 50 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 185 | 24 | 30 | 22 | 12 | 4 | G1/4 | 127 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 2,900.80 MXN | | 12000-040080 | 40 | 80 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 215 | 24 | 30 | 22 | 12 | 4 | G1/4 | 157 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 2,949.52 MXN | | 12000-040100 | 40 | 100 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 235 | 24 | 30 | 22 | 12 | 4 | G1/4 | 177 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 2,980.32 MXN | | 12000-040125 | 40 | 125 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 260 | 24 | 30 | 22 | 12 | 4 | G1/4 | 202 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 3,023.16 MXN | | 12000-040160 | 40 | 160 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 295 | 24 | 30 | 22 | 12 | 4 | G1/4 | 237 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 3,078.60 MXN | | 12000-040200 | 40 | 200 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 335 | 24 | 30 | 22 | 12 | 4 | G1/4 | 277 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 3,141.88 MXN | | 12000-040250 | 40 | 250 | 38 | 12,5 | 7,5 | 54 | M12x1,25 | 16 | 35 | M6 | 385 | 24 | 30 | 22 | 12 | 4 | G1/4 | 327 | 14 | - | 13 | 2,5 | 16,5 | 4,5 | 716 | 601 | | | 3,391.36 MXN | | 12000-050025 | 50 | 25 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 168 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 103 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,294.76 MXN | | 12000-050050 | 50 | 50 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 193 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 128 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,347.68 MXN | | 12000-050080 | 50 | 80 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 223 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 158 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,413.76 MXN | | 12000-050100 | 50 | 100 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 243 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 178 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,454.36 MXN | | 12000-050125 | 50 | 125 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 268 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 203 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,510.08 MXN | | 12000-050160 | 50 | 160 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 303 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 238 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,582.88 MXN | | 12000-050200 | 50 | 200 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 343 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 278 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,670.24 MXN | | 12000-050250 | 50 | 250 | 46,5 | 13,25 | 5 | 63 | M16x1,5 | 20 | 40 | M8 | 393 | 32 | 37 | 25,5 | 10,5 | 4 | G1/4 | 328 | 14 | - | 17 | 2,5 | 16,5 | 4,5 | 1180 | 939 | | | 3,778.60 MXN | | 12000-063025 | 63 | 25 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 183 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 106 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 3,867.64 MXN | | 12000-063050 | 63 | 50 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 208 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 131 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 3,927.00 MXN | | 12000-063080 | 63 | 80 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 238 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 161 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,000.64 MXN | | 12000-063100 | 63 | 100 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 258 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 181 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,048.80 MXN | | 12000-063125 | 63 | 125 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 283 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 206 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,112.36 MXN | | 12000-063160 | 63 | 160 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 318 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 241 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,158.28 MXN | | 12000-063200 | 63 | 200 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 358 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 281 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,293.24 MXN | | 12000-063250 | 63 | 250 | 56,5 | 8 | 9 | 74 | M16x1,5 | 20 | 45 | M8 | 408 | 32 | 37 | 25 | 8,5 | 4 | G3/8 | 331 | 20 | 7 | 17 | 2,5 | 16,5 | 4,5 | 1775 | 1596 | | | 4,413.92 MXN | | 12000-080025 | 80 | 25 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 199 | 40 | 46 | 35 | 10 | 4 | G3/8 | 116 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,117.28 MXN | | 12000-080050 | 80 | 50 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 224 | 40 | 46 | 35 | 10 | 4 | G3/8 | 141 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,201.28 MXN | | 12000-080080 | 80 | 80 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 254 | 40 | 46 | 35 | 10 | 4 | G3/8 | 171 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,301.80 MXN | | 12000-080100 | 80 | 100 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 274 | 40 | 46 | 35 | 10 | 4 | G3/8 | 191 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,369.00 MXN | | 12000-080125 | 80 | 125 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 299 | 40 | 46 | 35 | 10 | 4 | G3/8 | 216 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,450.20 MXN | | 12000-080160 | 80 | 160 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 334 | 40 | 46 | 35 | 10 | 4 | G3/8 | 251 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,569.20 MXN | | 12000-080200 | 80 | 200 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 374 | 40 | 46 | 35 | 10 | 4 | G3/8 | 291 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 5,702.48 MXN | | 12000-080250 | 80 | 250 | 72 | 9,25 | 14 | 93,5 | M20x1,5 | 25 | 45 | M10 | 424 | 40 | 46 | 35 | 10 | 4 | G3/8 | 341 | 18,5 | 6,5 | 22 | 4 | 17 | - | 2863 | 2583 | | | 6,178.48 MXN | |
