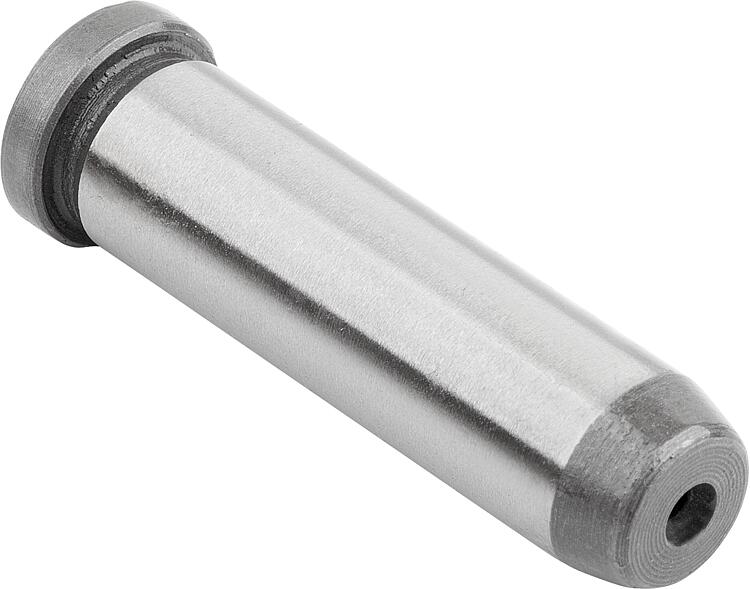

21597-10Pernos guía de acero con collar |
Volver |
|
Descripción del artículo/Imágenes del producto |
|
|
DescripciónMaterial:Pernos guía de acero de cementación 1.7139.Versión:templado por cementación.Indicación:Los pernos guía de acero son la solución perfecta para los cometidos de guiado preciso en los procesos de fabricación complejos. Los pernos guía ofrecen una máxima estabilidad, durabilidad y precisión en numerosas aplicaciones.
Los pernos guía ofrecen una construcción robusta que garantiza un guiado fiable incluso bajo una carga intensa. Sirven para posicionar las herramientas y moldes de forma segura y exacta, con vistas a obtener unos resultados de mecanizado de alta precisión.
Los pernos guía están diseñados para permitir un movimiento y alineación sin trabas, incrementando así la eficiencia y la calidad de sus procesos de fabricación. Su mecanizado preciso garantiza un rendimiento constante durante toda la vida útil.
El principio 3+1 garantiza el ensamblaje correcto de las dos mitades del molde. Se instalan 3 elementos guía con un diámetro mayor y 1 elemento guía con un diámetro menor.Características especiales: DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
Selección/filtro de artículos |
|

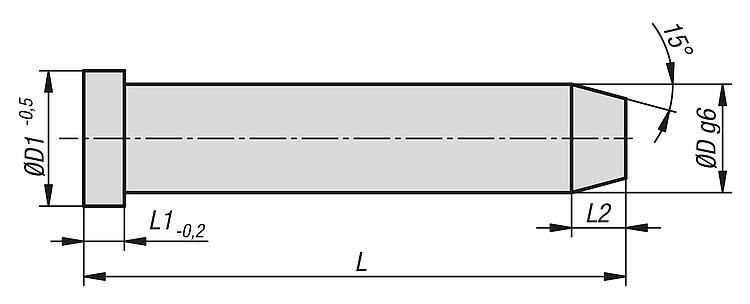

| Referencia | D
| D1 | L | L1 | L2 | CAD | Acc. | Precio | Pedir |
|---|
| 21597-10-08040 | 8 | 10 | 40 | 3 | 4 |  | | 178.79 MXN | | | 21597-10-08050 | 8 | 10 | 50 | 3 | 4 | | | 178.79 MXN | | | 21597-10-08060 | 8 | 10 | 60 | 3 | 4 | | | 178.79 MXN | | | 21597-10-08080 | 8 | 10 | 80 | 3 | 4 | | | 185.12 MXN | | | 21597-10-08100 | 8 | 10 | 100 | 3 | 4 | | | 196.56 MXN | | | 21597-10-09040 | 9 | 12 | 40 | 3 | 4 | | | 176.39 MXN | | | 21597-10-09060 | 9 | 12 | 60 | 3 | 4 | | | 179.70 MXN | | | 21597-10-09080 | 9 | 12 | 80 | 3 | 4 | | | 184.52 MXN | | | 21597-10-09100 | 9 | 12 | 100 | 3 | 4 | | | 201.38 MXN | | | 21597-10-09120 | 9 | 12 | 120 | 3 | 4 | | | 225.75 MXN | | | 21597-10-10040 | 10 | 12 | 40 | 3 | 4 | | | 176.39 MXN | | | 21597-10-10060 | 10 | 12 | 60 | 3 | 4 | | | 179.70 MXN | | | 21597-10-10080 | 10 | 12 | 80 | 3 | 4 | | | 184.52 MXN | | | 21597-10-10100 | 10 | 12 | 100 | 3 | 4 | | | 201.38 MXN | | | 21597-10-10120 | 10 | 12 | 120 | 3 | 4 | | | 225.75 MXN | | | 21597-10-10140 | 10 | 12 | 140 | 3 | 4 | | | 281.44 MXN | | | 21597-10-10160 | 10 | 12 | 160 | 3 | 4 | | | 433.75 MXN | | | 21597-10-12040 | 12 | 16 | 40 | 6 | 5 | | | 184.52 MXN | | | 21597-10-12060 | 12 | 16 | 60 | 6 | 5 | | | 196.85 MXN | | | 21597-10-12080 | 12 | 16 | 80 | 6 | 5 | | | 209.20 MXN | | | 21597-10-12100 | 12 | 16 | 100 | 6 | 5 | | | 229.96 MXN | | | 21597-10-12120 | 12 | 16 | 120 | 6 | 5 | | | 251.34 MXN | | | 21597-10-12140 | 12 | 16 | 140 | 6 | 5 | | | 276.92 MXN | | | 21597-10-12160 | 12 | 16 | 160 | 6 | 5 | | | 297.99 MXN | | | 21597-10-12180 | 12 | 16 | 180 | 6 | 5 | | | 479.19 MXN | | | 21597-10-12200 | 12 | 16 | 200 | 6 | 5 | | | 518.92 MXN | | | 21597-10-14060 | 14 | 18 | 60 | 8 | 5 | | | 205.28 MXN | | | 21597-10-14080 | 14 | 18 | 80 | 8 | 5 | | | 213.42 MXN | | | 21597-10-14100 | 14 | 18 | 100 | 8 | 5 | | | 243.52 MXN | | | 21597-10-14120 | 14 | 18 | 120 | 8 | 5 | | | 263.68 MXN | | | 21597-10-14140 | 14 | 18 | 140 | 8 | 5 | | | 310.94 MXN | | | 21597-10-14160 | 14 | 18 | 160 | 8 | 5 | | | 360.60 MXN | | | 21597-10-14180 | 14 | 18 | 180 | 8 | 5 | | | 403.05 MXN | | | 21597-10-14200 | 14 | 18 | 200 | 8 | 5 | | | 536.38 MXN | | | 21597-10-14220 | 14 | 18 | 220 | 8 | 5 | | | 565.28 MXN | | | 21597-10-14240 | 14 | 18 | 240 | 8 | 5 | | | 624.27 MXN | | | 21597-10-15060 | 15 | 18 | 60 | 8 | 5 | | | 205.28 MXN | | | 21597-10-15080 | 15 | 18 | 80 | 8 | 5 | | | 163.45 MXN | | | 21597-10-15100 | 15 | 18 | 100 | 8 | 5 | | | 243.52 MXN | | | 21597-10-15120 | 15 | 18 | 120 | 8 | 5 | | | 267.29 MXN | | | 21597-10-15140 | 15 | 18 | 140 | 8 | 5 | | | 310.94 MXN | | | 21597-10-15160 | 15 | 18 | 160 | 8 | 5 | | | 360.60 MXN | | | 21597-10-15180 | 15 | 18 | 180 | 8 | 5 | | | 403.05 MXN | | | 21597-10-15200 | 15 | 18 | 200 | 8 | 5 | | | 536.38 MXN | | | 21597-10-15220 | 15 | 18 | 220 | 8 | 5 | | | 565.28 MXN | | | 21597-10-15240 | 15 | 18 | 240 | 8 | 5 | | | 624.27 MXN | | | 21597-10-16040 | 16 | 20 | 40 | 8 | 5 | | | 213.42 MXN | | | 21597-10-16060 | 16 | 20 | 60 | 8 | 5 | | | 218.53 MXN | | | 21597-10-16080 | 16 | 20 | 80 | 8 | 5 | | | 235.09 MXN | | | 21597-10-16100 | 16 | 20 | 100 | 8 | 5 | | | 263.68 MXN | | | 21597-10-16120 | 16 | 20 | 120 | 8 | 5 | | | 293.48 MXN | | | 21597-10-16140 | 16 | 20 | 140 | 8 | 5 | | | 335.31 MXN | | | 21597-10-16160 | 16 | 20 | 160 | 8 | 5 | | | 381.98 MXN | | | 21597-10-16180 | 16 | 20 | 180 | 8 | 5 | | | 423.81 MXN | | | 21597-10-16200 | 16 | 20 | 200 | 8 | 5 | | | 465.65 MXN | | | 21597-10-16220 | 16 | 20 | 220 | 8 | 5 | | | 508.09 MXN | | | 21597-10-16240 | 16 | 20 | 240 | 8 | 5 | | | 634.82 MXN | | | 21597-10-16300 | 16 | 20 | 300 | 8 | 5 | | | 1,028.52 MXN | | | 21597-10-18060 | 18 | 22 | 60 | 8 | 7 | | | 235.09 MXN | | | 21597-10-18080 | 18 | 22 | 80 | 8 | 7 | | | 255.85 MXN | | | 21597-10-18100 | 18 | 22 | 100 | 8 | 7 | | | 284.75 MXN | | | 21597-10-18120 | 18 | 22 | 120 | 8 | 7 | | | 318.16 MXN | | | 21597-10-18140 | 18 | 22 | 140 | 8 | 7 | | | 360.60 MXN | | | 21597-10-18160 | 18 | 22 | 160 | 8 | 7 | | | 398.23 MXN | | | 21597-10-18180 | 18 | 22 | 180 | 8 | 7 | | | 450.00 MXN | | | 21597-10-18200 | 18 | 22 | 200 | 8 | 7 | | | 490.34 MXN | | | 21597-10-18220 | 18 | 22 | 220 | 8 | 7 | | | 553.55 MXN | | | 21597-10-18240 | 18 | 22 | 240 | 8 | 7 | | | 616.45 MXN | | | 21597-10-18260 | 18 | 22 | 260 | 8 | 7 | | | 884.04 MXN | | | 21597-10-18280 | 18 | 22 | 280 | 8 | 7 | | | 877.11 MXN | | | 21597-10-18300 | 18 | 22 | 300 | 8 | 7 | | | 1,057.11 MXN | | | 21597-10-18320 | 18 | 22 | 320 | 8 | 7 | | | 1,142.90 MXN | | | 21597-10-20060 | 20 | 24 | 60 | 8 | 7 | | | 263.68 MXN | | | 21597-10-20080 | 20 | 24 | 80 | 8 | 7 | | | 280.84 MXN | | | 21597-10-20100 | 20 | 24 | 100 | 8 | 7 | | | 310.94 MXN | | | 21597-10-20120 | 20 | 24 | 120 | 8 | 7 | | | 364.21 MXN | | | 21597-10-20140 | 20 | 24 | 140 | 8 | 7 | | | 398.23 MXN | | | 21597-10-20160 | 20 | 24 | 160 | 8 | 7 | | | 440.37 MXN | | | 21597-10-20180 | 20 | 24 | 180 | 8 | 7 | | | 495.75 MXN | | | 21597-10-20200 | 20 | 24 | 200 | 8 | 7 | | | 558.66 MXN | | | 21597-10-20220 | 20 | 24 | 220 | 8 | 7 | | | 612.23 MXN | | | 21597-10-20240 | 20 | 24 | 240 | 8 | 7 | | | 534.88 MXN | | | 21597-10-20260 | 20 | 24 | 260 | 8 | 7 | | | 924.38 MXN | | | 21597-10-20280 | 20 | 24 | 280 | 8 | 7 | | | 1,039.36 MXN | | | 21597-10-20300 | 20 | 24 | 300 | 8 | 7 | | | 1,114.30 MXN | | | 21597-10-20320 | 20 | 24 | 320 | 8 | 7 | | | 1,201.90 MXN | | | 21597-10-22080 | 22 | 26 | 80 | 15 | 7 | | | 322.98 MXN | | | 21597-10-22100 | 22 | 26 | 100 | 15 | 7 | | | 360.60 MXN | | | 21597-10-22120 | 22 | 26 | 120 | 15 | 7 | | | 432.84 MXN | | | 21597-10-22140 | 22 | 26 | 140 | 15 | 7 | | | 473.77 MXN | | | 21597-10-22160 | 22 | 26 | 160 | 15 | 7 | | | 512.01 MXN | | | 21597-10-22180 | 22 | 26 | 180 | 15 | 7 | | | 470.76 MXN | | | 21597-10-22200 | 22 | 26 | 200 | 15 | 7 | | | 612.23 MXN | | | 21597-10-22220 | 22 | 26 | 220 | 15 | 7 | | | 585.75 MXN | | | 21597-10-22240 | 22 | 26 | 240 | 15 | 7 | | | 755.82 MXN | | | 21597-10-22260 | 22 | 26 | 260 | 15 | 7 | | | 831.07 MXN | | | 21597-10-22280 | 22 | 26 | 280 | 15 | 7 | | | 906.61 MXN | | | 21597-10-22300 | 22 | 26 | 300 | 15 | 7 | | | 982.77 MXN | | | 21597-10-22320 | 22 | 26 | 320 | 15 | 7 | | | 1,172.40 MXN | | | 21597-10-22340 | 22 | 26 | 340 | 15 | 7 | | | 1,241.93 MXN | | | 21597-10-22360 | 22 | 26 | 360 | 15 | 7 | | | 1,356.91 MXN | | | 21597-10-24080 | 24 | 28 | 80 | 15 | 7 | | | 360.60 MXN | | | 21597-10-24100 | 24 | 28 | 100 | 15 | 7 | | | 406.35 MXN | | | 21597-10-24120 | 24 | 28 | 120 | 15 | 7 | | | 478.90 MXN | | | 21597-10-24140 | 24 | 28 | 140 | 15 | 7 | | | 512.01 MXN | | | 21597-10-24160 | 24 | 28 | 160 | 15 | 7 | | | 553.55 MXN | | | 21597-10-24180 | 24 | 28 | 180 | 15 | 7 | | | 599.90 MXN | | | 21597-10-24200 | 24 | 28 | 200 | 15 | 7 | | | 642.64 MXN | | | 21597-10-24220 | 24 | 28 | 220 | 15 | 7 | | | 738.36 MXN | | | 21597-10-24240 | 24 | 28 | 240 | 15 | 7 | | | 830.76 MXN | | | 21597-10-24260 | 24 | 28 | 260 | 15 | 7 | | | 909.33 MXN | | | 21597-10-24280 | 24 | 28 | 280 | 15 | 7 | | | 987.28 MXN | | | 21597-10-24300 | 24 | 28 | 300 | 15 | 7 | | | 1,066.74 MXN | | | 21597-10-24320 | 24 | 28 | 320 | 15 | 7 | | | 1,259.09 MXN | | | 21597-10-24340 | 24 | 28 | 340 | 15 | 7 | | | 1,343.37 MXN | | | 21597-10-24360 | 24 | 28 | 360 | 15 | 7 | | | 1,472.80 MXN | | | 21597-10-30100 | 30 | 36 | 100 | 15 | 7 | | | 459.93 MXN | | | 21597-10-30120 | 30 | 36 | 120 | 15 | 7 | | | 620.66 MXN | | | 21597-10-30140 | 30 | 36 | 140 | 15 | 7 | | | 687.48 MXN | | | 21597-10-30160 | 30 | 36 | 160 | 15 | 7 | | | 755.82 MXN | | | 21597-10-30180 | 30 | 36 | 180 | 15 | 7 | | | 818.72 MXN | | | 21597-10-30200 | 30 | 36 | 200 | 15 | 7 | | | 882.53 MXN | | | 21597-10-30240 | 30 | 36 | 240 | 15 | 7 | | | 1,176.01 MXN | | | 21597-10-30300 | 30 | 36 | 300 | 15 | 7 | | | 1,520.05 MXN | | | 21597-10-30360 | 30 | 36 | 360 | 15 | 7 | | | 1,935.43 MXN | | | 21597-10-30400 | 30 | 36 | 400 | 15 | 7 | | | 2,224.10 MXN | | | 21597-10-32100 | 32 | 36 | 100 | 15 | 7 | | | 546.01 MXN | | | 21597-10-32120 | 32 | 36 | 120 | 15 | 7 | | | 526.75 MXN | | | 21597-10-32140 | 32 | 36 | 140 | 15 | 7 | | | 687.48 MXN | | | 21597-10-32160 | 32 | 36 | 160 | 15 | 7 | | | 755.82 MXN | | | 21597-10-32180 | 32 | 36 | 180 | 15 | 7 | | | 818.72 MXN | | | 21597-10-32200 | 32 | 36 | 200 | 15 | 7 | | | 882.53 MXN | | | 21597-10-32240 | 32 | 36 | 240 | 15 | 7 | | | 1,176.01 MXN | | | 21597-10-32300 | 32 | 36 | 300 | 15 | 7 | | | 1,520.05 MXN | | | 21597-10-32360 | 32 | 36 | 360 | 15 | 7 | | | 1,935.43 MXN | | | 21597-10-32400 | 32 | 36 | 400 | 15 | 7 | | | 2,299.35 MXN | | | 21597-10-40160 | 40 | 48 | 160 | 15 | 10 | | | 1,419.52 MXN | | | 21597-10-40200 | 40 | 48 | 200 | 15 | 10 | | | 1,675.97 MXN | | | 21597-10-40240 | 40 | 48 | 240 | 15 | 10 | | | 1,923.70 MXN | | | 21597-10-40300 | 40 | 48 | 300 | 15 | 10 | | | 2,301.15 MXN | | | 21597-10-40360 | 40 | 48 | 360 | 15 | 10 | | | 2,716.83 MXN | | | 21597-10-40400 | 40 | 48 | 400 | 15 | 10 | | | 3,061.77 MXN | | | 21597-10-40420 | 40 | 48 | 420 | 15 | 10 | | | 3,205.96 MXN | | | 21597-10-40500 | 40 | 48 | 500 | 15 | 10 | | | 3,711.64 MXN | | | 21597-10-50160 | 50 | 58 | 160 | 15 | 15 | | | 2,196.10 MXN | | | 21597-10-50200 | 50 | 58 | 200 | 15 | 15 | | | 2,132.89 MXN | | | 21597-10-50240 | 50 | 58 | 240 | 15 | 15 | | | 2,377.90 MXN | | | 21597-10-50300 | 50 | 58 | 300 | 15 | 15 | | | 3,133.41 MXN | | | 21597-10-50360 | 50 | 58 | 360 | 15 | 15 | | | 3,625.24 MXN | | | 21597-10-50400 | 50 | 58 | 400 | 15 | 15 | | | 3,972.00 MXN | | | 21597-10-50500 | 50 | 58 | 500 | 15 | 15 | | | 5,126.34 MXN | | | 21597-10-60280 | 60 | 58 | 280 | 15 | 15 | | | 4,116.18 MXN | | | 21597-10-60300 | 60 | 58 | 300 | 15 | 15 | | | 4,361.49 MXN | | | 21597-10-60340 | 60 | 58 | 340 | 15 | 15 | | | 4,838.27 MXN | | | 21597-10-60360 | 60 | 58 | 360 | 15 | 15 | | | 5,097.44 MXN | | | 21597-10-60400 | 60 | 58 | 400 | 15 | 15 | | | 5,530.88 MXN | | | 21597-10-60500 | 60 | 58 | 500 | 15 | 15 | | | 6,701.46 MXN | |
