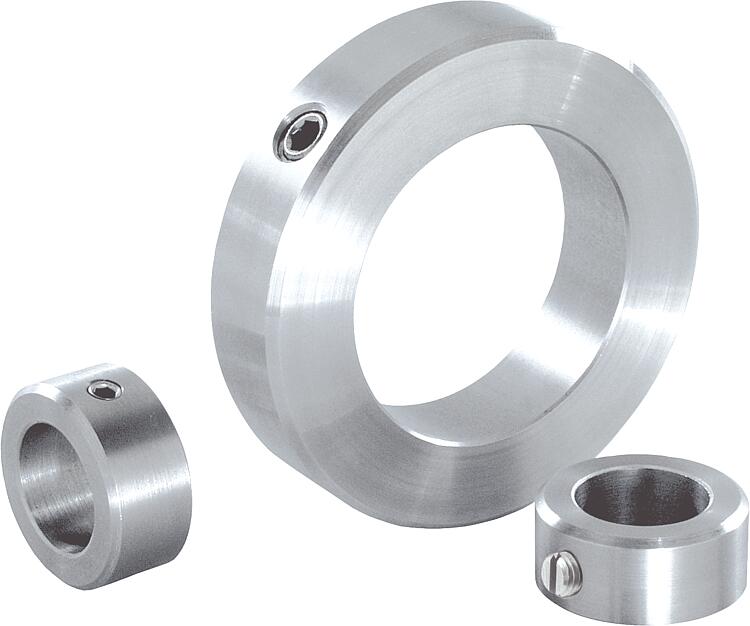

07800Anillos de regulación DIN 705, acero inoxidable |
Volver |
|
Descripción del artículo/Imágenes del producto |
|
|
DescripciónMaterial:Acero inoxidable 1.4305. Versión:Acabado natural.Indicación:Forma A: con tornillo de sujeción DIN 553 (ranura)
Forma E: con tornillo de sujeción DIN 914 (hexágono interior) Indicación sobre el dibujo:1) Segundo tornillo de sujeción a partir de D1 ≥ 75 DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
Anillos de regulación DIN 705, acero inoxidable, forma A, ranura |
Más información |
Selección/filtro de artículos |
|
| Referencia | Forma | Material
del componente | D1 | B | D2 | D3
Tornillo de sujeción | CAD | Acc. | Precio | Pedir |
|---|
| 07800-100302 | A | acero inoxidable | 3 | 5 | 7 | M2x3 |  | | 31.72 MXN | | | 07800-100402 | A | acero inoxidable | 4 | 5 | 8 | M2,5x3 | | | 31.98 MXN | | | 07800-100502 | A | acero inoxidable | 5 | 6 | 10 | M3x4 | | | 31.98 MXN | | | 07800-100602 | A | acero inoxidable | 6 | 8 | 12 | M4x5 | | | 34.32 MXN | | | 07800-100702 | A | acero inoxidable | 7 | 8 | 12 | M4x5 | | | 34.32 MXN | | | 07800-100802 | A | acero inoxidable | 8 | 8 | 16 | M4x6 | | | 42.38 MXN | | | 07800-100902 | A | acero inoxidable | 9 | 10 | 18 | M5x8 | | | 45.50 MXN | | | 07800-101002 | A | acero inoxidable | 10 | 10 | 20 | M5x8 | | | 49.66 MXN | | | 07800-101102 | A | acero inoxidable | 11 | 10 | 20 | M5x8 | | | 49.66 MXN | | | 07800-101202 | A | acero inoxidable | 12 | 12 | 22 | M6x8 | | | 62.40 MXN | | | 07800-101402 | A | acero inoxidable | 14 | 12 | 25 | M6x8 | | | 70.98 MXN | | | 07800-101502 | A | acero inoxidable | 15 | 12 | 25 | M6x8 | | | 70.98 MXN | | | 07800-101602 | A | acero inoxidable | 16 | 12 | 28 | M6x8 | | | 101.66 MXN | | | 07800-101802 | A | acero inoxidable | 18 | 14 | 32 | M6x8 | | | 131.30 MXN | | | 07800-102002 | A | acero inoxidable | 20 | 14 | 32 | M6x8 | | | 131.30 MXN | | | 07800-102402 | A | acero inoxidable | 24 | 16 | 40 | M8x12 | | | 216.06 MXN | | | 07800-102502 | A | acero inoxidable | 25 | 16 | 40 | M8x10 | | | 216.06 MXN | | | 07800-102602 | A | acero inoxidable | 26 | 16 | 40 | M8x10 | | | 216.06 MXN | | | 07800-102802 | A | acero inoxidable | 28 | 16 | 45 | M8x12 | | | 252.20 MXN | | | 07800-103002 | A | acero inoxidable | 30 | 16 | 45 | M8x10 | | | 252.20 MXN | | | 07800-103202 | A | acero inoxidable | 32 | 16 | 50 | M8x12 | | | 317.98 MXN | | | 07800-103502 | A | acero inoxidable | 35 | 16 | 56 | M8x12 | | | 327.08 MXN | | | 07800-103602 | A | acero inoxidable | 36 | 16 | 56 | M8x12 | | | 397.80 MXN | | | 07800-103802 | A | acero inoxidable | 38 | 16 | 56 | M8x12 | | | 420.42 MXN | | | 07800-104002 | A | acero inoxidable | 40 | 18 | 63 | M10x16 | | | 528.58 MXN | | | 07800-104202 | A | acero inoxidable | 42 | 18 | 63 | M10x16 | | | 528.58 MXN | | | 07800-104502 | A | acero inoxidable | 45 | 18 | 70 | M10x16 | | | 625.04 MXN | | | 07800-104802 | A | acero inoxidable | 48 | 18 | 70 | M10x16 | | | 625.04 MXN | | | 07800-105002 | A | acero inoxidable | 50 | 18 | 80 | M10x16 | | | 773.76 MXN | | | 07800-105202 | A | acero inoxidable | 52 | 18 | 80 | M10x16 | | | 796.64 MXN | | | 07800-105502 | A | acero inoxidable | 55 | 18 | 80 | M10x16 | | | 796.64 MXN | | | 07800-105602 | A | acero inoxidable | 56 | 18 | 80 | M10x16 | | | 796.64 MXN | | | 07800-105802 | A | acero inoxidable | 58 | 20 | 90 | M10x16 | | | 1,135.42 MXN | | | 07800-106002 | A | acero inoxidable | 60 | 20 | 90 | M10x16 | | | 1,135.42 MXN | | | 07800-106302 | A | acero inoxidable | 63 | 20 | 90 | M10x16 | | | 1,135.42 MXN | | | 07800-106502 | A | acero inoxidable | 65 | 20 | 100 | M10x20 | | | 1,497.34 MXN | | | 07800-106802 | A | acero inoxidable | 68 | 20 | 100 | M10x20 | | | 1,497.34 MXN | | | 07800-107002 | A | acero inoxidable | 70 | 20 | 100 | M10x20 | | | 1,497.34 MXN | | | 07800-107202 | A | acero inoxidable | 72 | 20 | 100 | M10x20 | | | 2,029.04 MXN | | | 07800-107502 | A | acero inoxidable | 75 | 22 | 110 | M12x20 | | | 2,029.04 MXN | | | 07800-108002 | A | acero inoxidable | 80 | 22 | 110 | M12x20 | | | 2,029.04 MXN | | | 07800-108502 | A | acero inoxidable | 85 | 22 | 125 | M12x25 | | | 2,614.30 MXN | | | 07800-109002 | A | acero inoxidable | 90 | 22 | 125 | M12x20 | | | 2,614.30 MXN | | | 07800-110002 | A | acero inoxidable | 100 | 25 | 140 | M12x25 | | | 3,099.46 MXN | |
|
Anillos de regulación DIN 705, acero inoxidable, forma E, hexágono interior |
Más información |
Selección/filtro de artículos |
|
| Referencia | Forma | Material
del componente | D1 | B | D2 | D3
Tornillo de sujeción | CAD | Acc. | Precio | Pedir |
|---|
| 07800-300302 | E | acero inoxidable | 3 | 5 | 7 | M2x3 | | | 30.42 MXN | | | 07800-300402 | E | acero inoxidable | 4 | 5 | 8 | M2,5x3 | | | 30.68 MXN | | | 07800-300502 | E | acero inoxidable | 5 | 6 | 10 | M3x4 | | | 30.68 MXN | | | 07800-300602 | E | acero inoxidable | 6 | 8 | 12 | M4x5 | | | 32.24 MXN | | | 07800-300702 | E | acero inoxidable | 7 | 8 | 12 | M4x5 | | | 32.24 MXN | | | 07800-300802 | E | acero inoxidable | 8 | 8 | 16 | M4x6 | | | 39.78 MXN | | | 07800-300902 | E | acero inoxidable | 9 | 10 | 18 | M5x8 | | | 44.20 MXN | | | 07800-301002 | E | acero inoxidable | 10 | 10 | 20 | M5x8 | | | 47.06 MXN | | | 07800-301102 | E | acero inoxidable | 11 | 10 | 20 | M5x8 | | | 48.88 MXN | | | 07800-301202 | E | acero inoxidable | 12 | 12 | 22 | M6x8 | | | 62.40 MXN | | | 07800-301402 | E | acero inoxidable | 14 | 12 | 25 | M6x8 | | | 70.98 MXN | | | 07800-301502 | E | acero inoxidable | 15 | 12 | 25 | M6x8 | | | 70.98 MXN | | | 07800-301602 | E | acero inoxidable | 16 | 12 | 28 | M6x8 | | | 99.58 MXN | | | 07800-301802 | E | acero inoxidable | 18 | 14 | 32 | M6x8 | | | 123.50 MXN | | | 07800-302002 | E | acero inoxidable | 20 | 14 | 32 | M6x8 | | | 123.50 MXN | | | 07800-302402 | E | acero inoxidable | 24 | 16 | 40 | M8x12 | | | 203.84 MXN | | | 07800-302502 | E | acero inoxidable | 25 | 16 | 40 | M8x10 | | | 203.84 MXN | | | 07800-302602 | E | acero inoxidable | 26 | 16 | 40 | M8x10 | | | 203.84 MXN | | | 07800-302802 | E | acero inoxidable | 28 | 16 | 45 | M8x12 | | | 239.20 MXN | | | 07800-303002 | E | acero inoxidable | 30 | 16 | 45 | M8x10 | | | 239.20 MXN | | | 07800-303202 | E | acero inoxidable | 32 | 16 | 50 | M8x12 | | | 302.38 MXN | | | 07800-303502 | E | acero inoxidable | 35 | 16 | 56 | M8x12 | | | 321.62 MXN | | | 07800-303602 | E | acero inoxidable | 36 | 16 | 56 | M8x12 | | | 361.66 MXN | | | 07800-303802 | E | acero inoxidable | 38 | 16 | 56 | M8x12 | | | 385.84 MXN | | | 07800-304002 | E | acero inoxidable | 40 | 18 | 63 | M10x16 | | | 505.70 MXN | | | 07800-304202 | E | acero inoxidable | 42 | 18 | 63 | M10x16 | | | 505.70 MXN | | | 07800-304502 | E | acero inoxidable | 45 | 18 | 70 | M10x16 | | | 587.08 MXN | | | 07800-304802 | E | acero inoxidable | 48 | 18 | 70 | M10x16 | | | 587.08 MXN | | | 07800-305002 | E | acero inoxidable | 50 | 18 | 80 | M10x16 | | | 627.64 MXN | | | 07800-305202 | E | acero inoxidable | 52 | 18 | 80 | M10x16 | | | 627.64 MXN | | | 07800-305502 | E | acero inoxidable | 55 | 18 | 80 | M10x16 | | | 627.64 MXN | | | 07800-305602 | E | acero inoxidable | 56 | 18 | 80 | M10x16 | | | 627.64 MXN | | | 07800-305802 | E | acero inoxidable | 58 | 20 | 90 | M10x16 | | | 964.60 MXN | | | 07800-306002 | E | acero inoxidable | 60 | 20 | 90 | M10x16 | | | 964.60 MXN | | | 07800-306302 | E | acero inoxidable | 63 | 20 | 90 | M10x16 | | | 964.60 MXN | | | 07800-306502 | E | acero inoxidable | 65 | 20 | 100 | M10x20 | | | 1,274.52 MXN | | | 07800-306802 | E | acero inoxidable | 68 | 20 | 100 | M10x20 | | | 1,274.52 MXN | | | 07800-307002 | E | acero inoxidable | 70 | 20 | 100 | M10x20 | | | 1,274.52 MXN | | | 07800-307202 | E | acero inoxidable | 72 | 20 | 100 | M10x20 | | | 1,712.36 MXN | | | 07800-307502 | E | acero inoxidable | 75 | 22 | 110 | M12x20 | | | 1,712.36 MXN | | | 07800-308002 | E | acero inoxidable | 80 | 22 | 110 | M12x20 | | | 1,712.36 MXN | | | 07800-308502 | E | acero inoxidable | 85 | 22 | 125 | M12x25 | | | 2,227.94 MXN | | | 07800-309002 | E | acero inoxidable | 90 | 22 | 125 | M12x20 | | | 2,227.94 MXN | | | 07800-310002 | E | acero inoxidable | 100 | 25 | 140 | M12x25 | | | 2,634.32 MXN | |
|
