02035Piezas de extensión |
Volver |
|

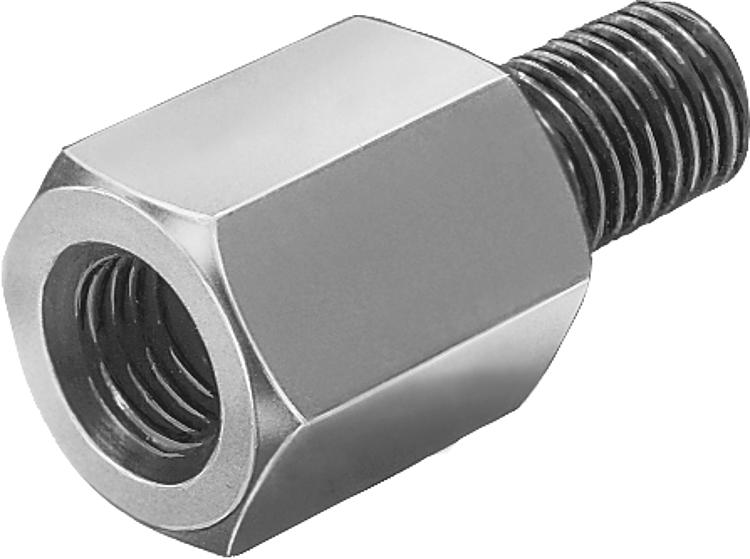

Descripción del artículo/Imágenes del producto |
|
|
DescripciónMaterial:Acero para temple y revenido.Versión:Bruñido.Indicación:Las piezas de extensión se utilizan para prolongar soportes con bola oscilante, piezas de presión con resorte, pies de posición, tornillos de apoyo y elementos similares.Características especiales: DescargarAquí figura información recopilada en formato PDF:
¿Está buscando datos CAD? Los encontrará directamente en la tabla de productos.
|
Selección/filtro de artículos |
|

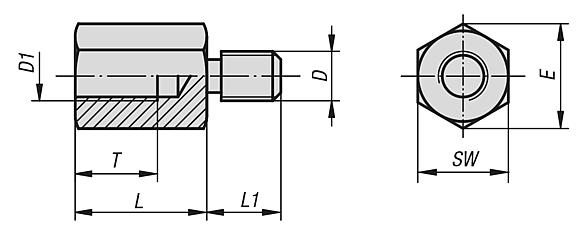

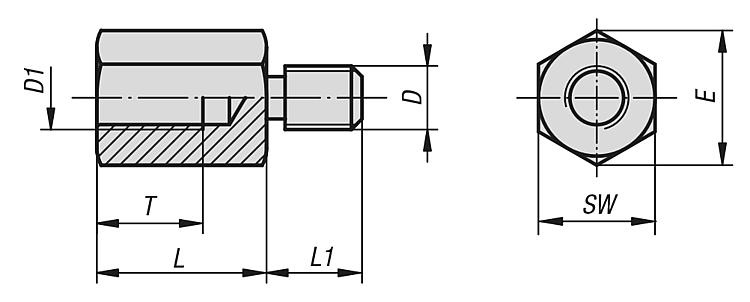

Referencia | L | L1 | T | D | D1 | E | SW | CAD | Acc. | Precio | Pedir |
---|
02035-08025 | 25 | 13 | 15 | M8 | M8 | 15 | 13 |  | | 251.44 MXN | | 02035-08032 | 32 | 13 | 15 | M8 | M8 | 15 | 13 |  | | 261.52 MXN | | 02035-08040 | 40 | 13 | 15 | M8 | M8 | 15 | 13 |  | | 285.88 MXN | | 02035-10025 | 25 | 15 | 17 | M10 | M10 | 19,6 | 17 |  | | 281.68 MXN | | 02035-10032 | 32 | 15 | 17 | M10 | M10 | 19,6 | 17 |  | | 284.48 MXN | | 02035-10040 | 40 | 15 | 17 | M10 | M10 | 19,6 | 17 |  | | 297.64 MXN | | 02035-10050 | 50 | 16 | 20 | M10 | M10 | 19,6 | 17 |  | | 315.56 MXN | | 02035-10075 | 75 | 16 | 20 | M10 | M10 | 19,6 | 17 |  | | 333.48 MXN | | 02035-108025 | 25 | 19 | 15 | M8 | M8 | 15 | 13 |  | | 206.36 MXN | | 02035-108032 | 32 | 19 | 15 | M8 | M8 | 15 | 13 |  | | 217.84 MXN | | 02035-108040 | 40 | 19 | 15 | M8 | M8 | 15 | 13 |  | | 235.48 MXN | | 02035-112032 | 32 | 30 | 20 | M12 | M12 | 25,4 | 22 |  | | 407.96 MXN | | 02035-112050 | 50 | 30 | 20 | M12 | M12 | 25,4 | 22 |  | | 431.76 MXN | | 02035-112075 | 75 | 30 | 20 | M12 | M12 | 25,4 | 22 |  | | 461.72 MXN | | 02035-116032 | 32 | 30 | 20 | M16 | M16 | 31,2 | 27 |  | | 469.00 MXN | | 02035-116050 | 50 | 30 | 30 | M16 | M16 | 31,2 | 27 |  | | 500.64 MXN | | 02035-116075 | 75 | 30 | 30 | M16 | M16 | 31,2 | 27 |  | | 552.72 MXN | | 02035-120320 | 32 | 18 | 20 | M12 | M12 | 25,4 | 22 |  | | 309.40 MXN | | 02035-120500 | 50 | 18 | 20 | M12 | M12 | 25,4 | 22 |  | | 324.52 MXN | | 02035-120750 | 75 | 18 | 20 | M12 | M12 | 25,4 | 22 |  | | 347.76 MXN | | 02035-160320 | 32 | 25 | 20 | M16 | M16 | 31,2 | 27 |  | | 351.40 MXN | | 02035-160500 | 50 | 25 | 30 | M16 | M16 | 31,2 | 27 |  | | 382.76 MXN | | 02035-160750 | 75 | 25 | 30 | M16 | M16 | 31,2 | 27 |  | | 420.00 MXN | |
